Final Destination..Final Home

Even with so many obstacles and challenges on the journey, the team manages to overcome the problems and reaches their destination on time...before 22 Jan 2007...our final destination...our final home...home sweet home...

Identification Please.. CHECK 3

Trail THREE

CHECK 3: Identification and Control Equipment - Magnetic Stripe

(1) Magnetic Stripe

=> Data encoded on a magnetic stripe that is readable in alnost any environment

=> Requires contact with a reader

=> Greater storage capability and more expensive than bar codes

=> Used in applications like credit/debit cards, membership cards etc.

Identification Please.. CHECK 2

Trail THREE

Check 2: Identification and Control Equipment - Radio Frequency (RF) Tag

(1) Radio Frequency (RF) Tag

=> Data encoded on chip encased in a tag

=> Can be read when the tag in within 30 ft. of an antenna (non-contact)

=> RF tags have greater data storage capability then Bar Codes

(1.1) Picture of a RF Tag Antenna

Identification Please.. CHECK 1

Trail THREE

CHECK 1 : Identification and Control Equipment - Bar Codes

(1) Bar Codes

=> Unique bar/space patterns represent various alphanumeric characters

=> A bar code system consists of bar code label, bar code scanner, and bar code printer

(1.1) Bar Code Reader

=> Two types of bar code reader: Contact and Non-Contact barcode scanners (Picture shown above is a Non-Contact Barcode Scanner)

Identification Please..

Trail THREE: Identification and Control Equipment

Identification and control equipment is used to collect and communicate information. The information is used to coordinate the flow of materials within and between a facility and its suppliers and customers.


Some examples of Identification and Control Equipment:

(1) Bar Codes

(2) Radio Frequency (RF) tag

(3) Magnetic Stripe

Breakdown!! PIT STOP 2

Trail TWO

PIT STOP 2: Storage Equipment - Storage Carousel, Drive-Through & Drive-In Rack

(1) Storage Carousel

=> Carousel consists of a set of vertically or horizontally revolving storage baskets or bins (picture shown above is a Vertical Storage Carousel)
=> Materials and the storage medium move to the operator (part-to-man), for
end-of-aisle picking
=> Each level can rotate independently in a clockwise or counter-clockwise direction

(2) Drive-Through Rack

=> Loads supported by rails attached to the upright beams
=> Lift Trucks driven between the upright beams
=> Open at both ends, allowing access from both ends (FIFO)

(3) Drive-In Rack

=> Similar as Drive-Through Rack, except that it is closed at one end, allowing entry from only one end (LIFO)

Breakdown!! PIT STOP 1

Trail TWO
PIT STOP 1: Storage Equipment - Automatic Storage/Retrieval Systems (ASRS)

ASRS consists of an integrated computer-controlled system that combines the storage medium, transport mechanism, and controls with various levels of automation for fast and accurate random storage of products and materials.

Major Types of ASRS:

(1) Unit Load ASRS

=> Used to store or retrieve loads that are palletized or unitized and weigh over 500 lbs
=> Stacking heights are up to 130 feet high

(2) Miniload ASRS

=> Used to store or retrieve small parts and tools that can be stored in a storage bin or drawer
=> Stacking heights range from 12 to 20 feet

(3) Man-On-Board ASRS

=> Used for in-aisle picking, operator picks from shelves or drawers within the storage structure
=> Manual or automatic control

(4) Deep-Lane ASRS

=> Similar to unit load ASRS, except loads can be stored to greater depths in the storage rack
=> A rack-entry vehicle is used to carry loads into the racks from the storage retrieval machine and is controlled by the machine

Breakdown!!

Trail TWO: Storage Equipment

Storage equipment is used for holding or buffering materials over a period of time.

Sub-categories of transport equipment and examples:

(1) Automatic Storage/Retrieval Systems (AS/RS)
=> Unit Load AS/RS
=> Miniload AS/RS
=> Man-On-Board AS/RS
=> Deep-Lane AS/RS

(2) Storage Carousel

(3) Drive-in & Drive-Through Rack

Journey Continues - 3rd STOP

Trail ONE 3rd STOP : Transport Equipment - INDUSTRIAL TRUCKS

Industrial trucks are used to transport materials over variable paths, with no restrictions on the area covered by the movement.

Major Types of Industrial Trucks:

(1) Pallet Jack

=> Pallet Restrictions: reversible pallets cannot be used and double-faced nonreversible pallets cannot have deckboards

(1.1) Manual Pallet Jack
=> Manual lifting and travel

(1.2) Powered Pallet Jack
=> Powered lifting and travel

(2) Narrow Aisle (NA) Truck

(2.1) NA Straddle Truck

=> Minimum aisle width requirement is 7-8 feet
=> Less expensive than NA reach truck

(2.2) NA Reach Truck

=> Minimum aisle width requirement is 8-10 feet
=> Reaching capability enables the use of shorter outrigger arms as compared to NA straddle truck

(3) Turret Truck

=> Greater stacking height compared to other narrow-aisle trucks but greater investment cost
=> Transport greater-than-pallet-size load

(3.1) Operator-Down Turret Truck
=> Operator not lifted with the load
=> Minimum aisle width requirement is 5-6 feet

(3.2) Operator-Up Turret Truck
=> Operator is lifted with the load to allow precise stacking and picking
=> Minimum aisle width requirement is 5-7 feet

Journey Continues - 2nd STOP

Trail ONE 2nd STOP : Transport Equipment - CRANES

Cranes are used to transport materials over variable paths within a restricted area.

Major Types of Cranes:

(1) Gantry Cranes

=> Types of Gantry Cranes - Single leg, Double leg and Mobile types
=> Can be fixed in positions or travel on runways
=> Can be used outdoors when it is supported at both ends

(2) Jib Cranes

=> A hoist is attached to the arm for lifting
=> It can function as a manipulator for positioning tasks
=> Its arm can rotate 360°

(3) Stacker Cranes

=> Used for storing and retrieving unit loads in storage racks, especially in high-rise applications (more than 50 feet high)
=> Can be controlled remotely or manually by an operator
=> Can be rack-supported

Journey Continues...1st STOP

Trail ONE 1st STOP: Transport Equipment - CONVEYORS

Conveyors are used to transport materials over a fixed path.

Major types of Conveyors:

(1) Roller Conveyors
(1.1) Gravity Roller Conveyors

=> Subsitution to wheel conveyors
=> Suitable for Heavy-duty applications

(1.2) Live (Powered) Roller Conveyors

=> Belt or Chain driven
=> Provides limited incline movement capacity

(2) Wheel Conveyors

=> A series of skatewheels mounted on a shaft or axle, where the spacing of the wheels is dependent on the load being transported
=> Suitable for Light-duty applications
=> Cheaper compared to Roller conveyor

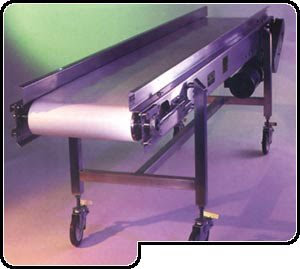

(3) Flat Belt Conveyors


=> Provides considerable control over the orientation and placement of the load
=> Suitable for Light or Medium-weight Loads

Aboard...

Trail ONE: Transport Equipment

Transport equipment is used to move materials between workplaces, between a loading dock and a storage area, within a facility ot at a site.

Sub-categories of transport equipment and examples:

(1) CONVEYORS
=> Roller Conveyors ( Gravity Roller Conveyor and Live/Powered Roller Conveyor)
=> Wheel Conveyors
=> Flat Belt Conveyors

(2) CRANES
=> Gantry Cranes
=> Jib Cranes
=> Stacker Cranes

(3) INDUSTRIAL TRUCKS
=> Pallet Jack (Manual and Powered Pallet Jack)
=> Narrow Aisle (NA) Straddle Truck and NA Reach Truck
=> Turret Truck (Operator-Down and Operator-Up Turret truck)

Journey Begins...

Materials Handling Equipments are commonly used for the movement and storage of materials within the area.

Classified into 5 major categories :
- Transport Equipment
=> The equipment is used for movement of materials from one place to another.
- Positioning Equpiment
=> The equipment is used for handling of materials at the single area to make sure that material is at the correct place for subsequent handling, machining, transport and storage.
- Unit Load Formation Equpiment
=> The equipment is used to restrict materials so as to maintain their integrity when handling a single load when transport and storage.
- Storage Equipment
=> The equipment is used to hold or buffer materials over a period of time.
- Identification and Control Equipment
=> The equipment is used to retrieve and communicate the information that is used to coordinate the flow of materials within and between the plant and its suppliers and customers.
